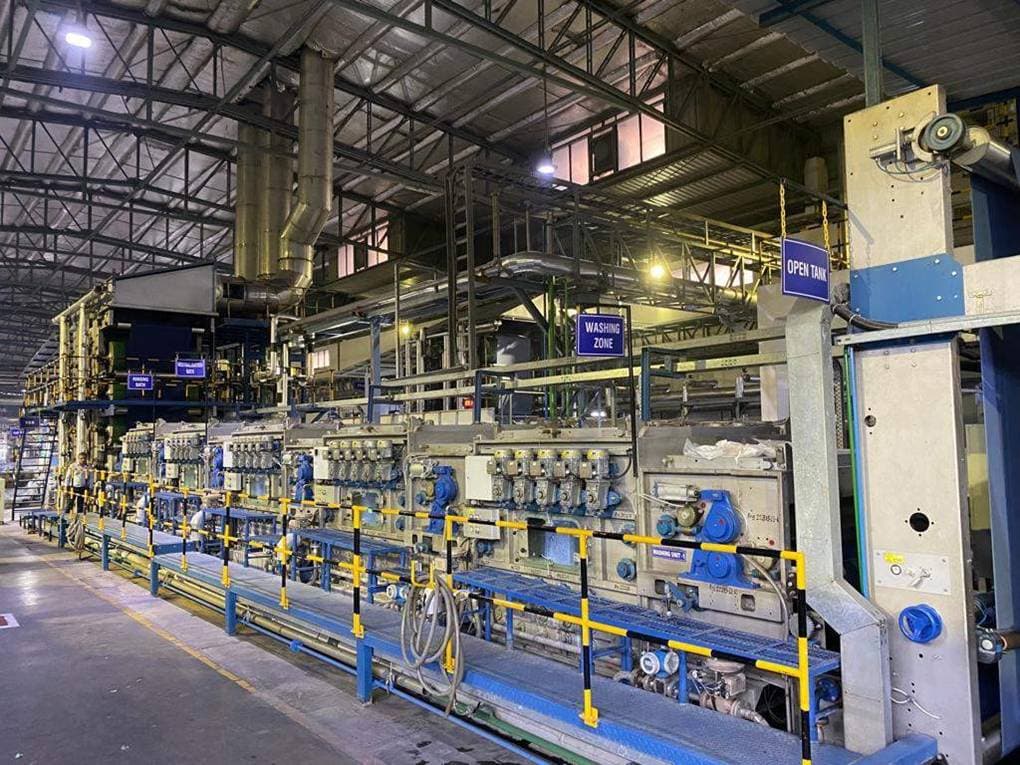

High Performance WashingFoundation of wet finishing
Engineered through innovative design, our finishing ranges are built to process sensitive fabrics at high speeds while delivering flawless results.
CDG Washing Compartment: Design Options

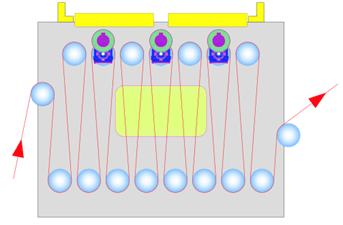

Classic
Fabric content: 19–21 mts
- Standard "up-down" execution
- Alternative top-rolls driven
- Steam injector based heating mechanism
- Water-lock system to prevent steam loss
- Roller dia 200 mm for crease-free operation

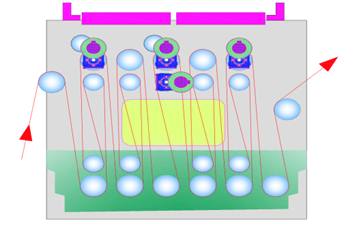

S-Type
Fabric content: 31 mts
- S-Type "dip and nip" execution
- Alternative top-rolls driven with jockey nip-rollers
- Steam injector based heating mechanism
- Water-lock system
- Roller dia 200 mm
- Load cell option available
- Option available to drive all top rolls for lycra runs
StripWash
Fabric content: 21 mts
- Stripper roller to aid sensitive lycra runs
- Alternate set of top-rolls with 3 nos stripper rolls riven
- Steam injector based heating mechanism
- Water-lock system
- Roller dia 200/168 mm
- Load cell option available

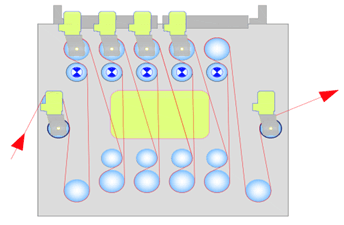

Duplex-L
Fabric content: 18–31 mts
- Guided execution for sensitive lycra (with S-type option as well)
- Stripper rollers at top and bottom for better control
- Driven scroll rolls at inlet and outlet
- Steam injectors
- Roller dia 200/168 mm
- Load cell option available
S-Type Washing
Designed for High Performance Engineered to Perfection

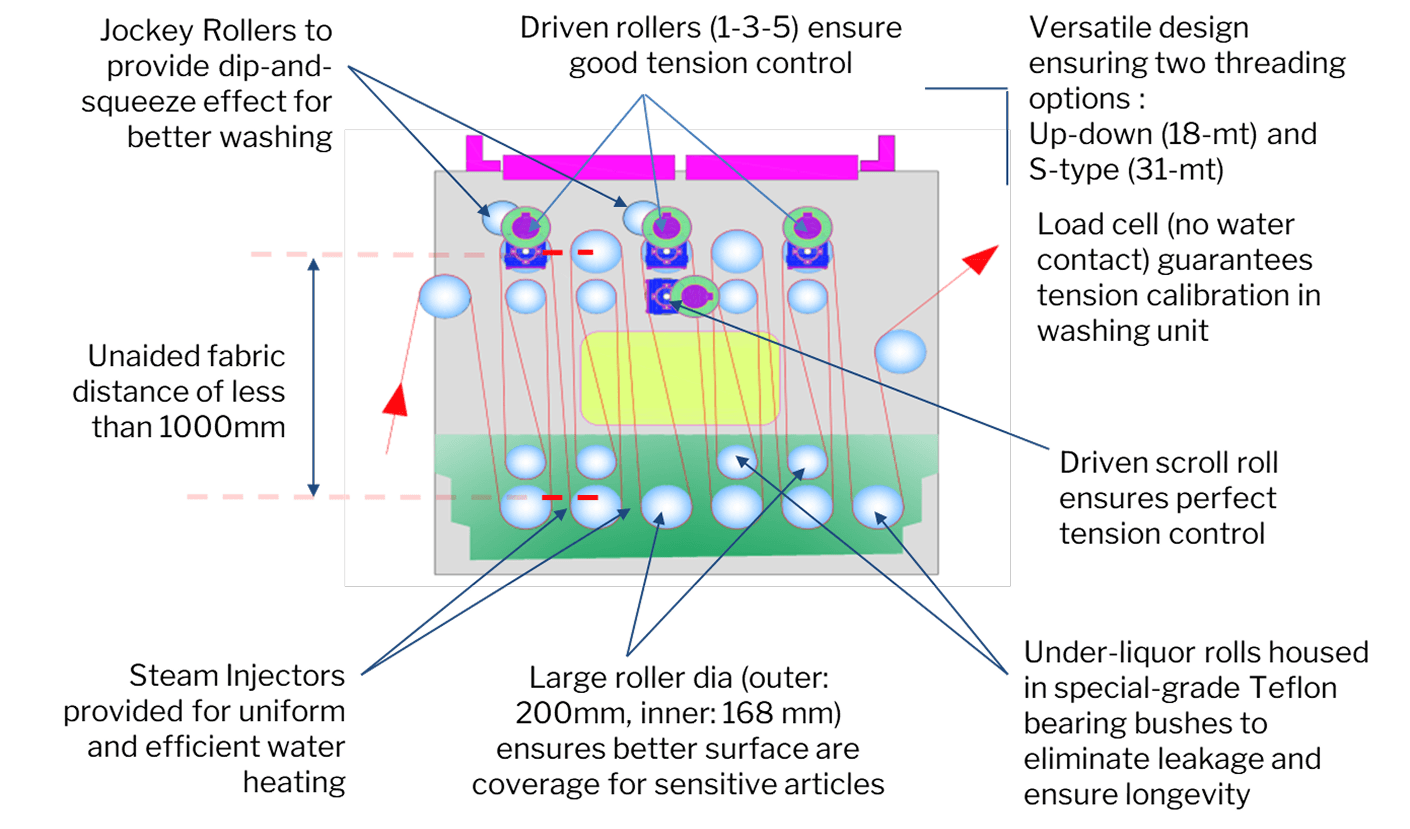

S-Type Washing Unit: Key Design Attributes
Duplex-L Washing
Designed for Lycra, Engineered to Perfection

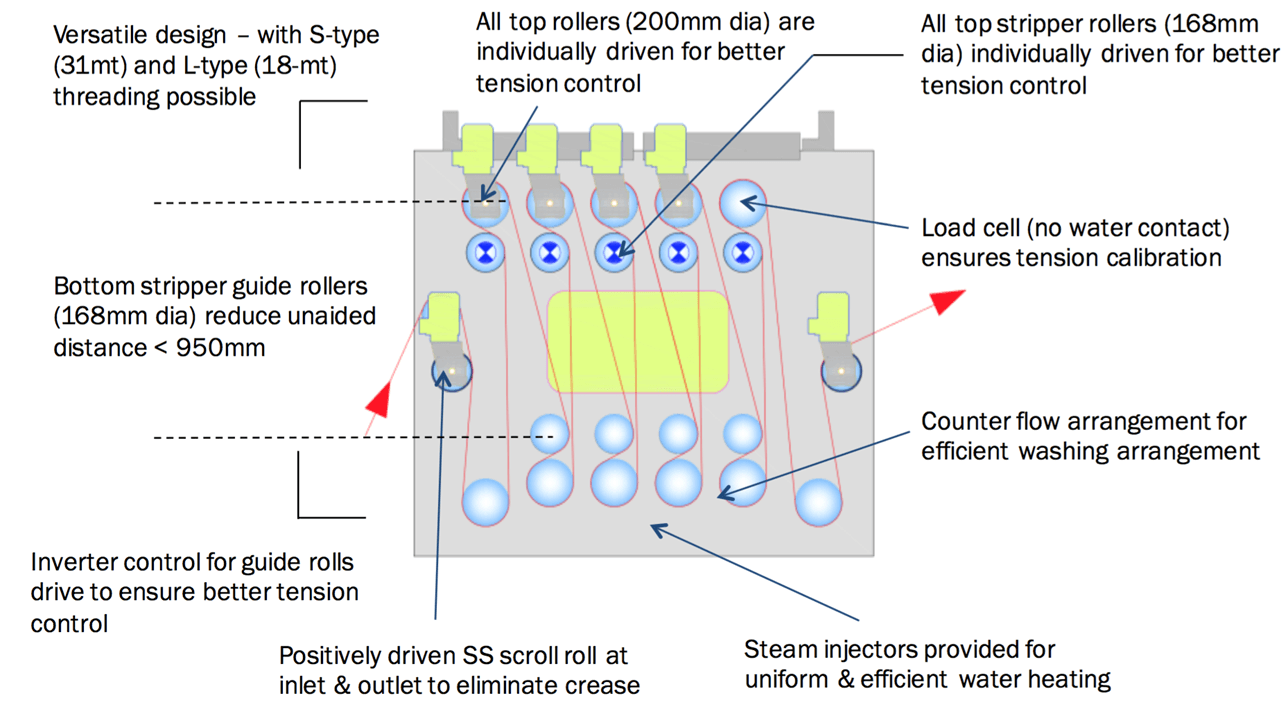

Duplex-L Washing Unit: Key Design Attributes
Duplex-L HPE Washing
Perfected for High Performance Washing

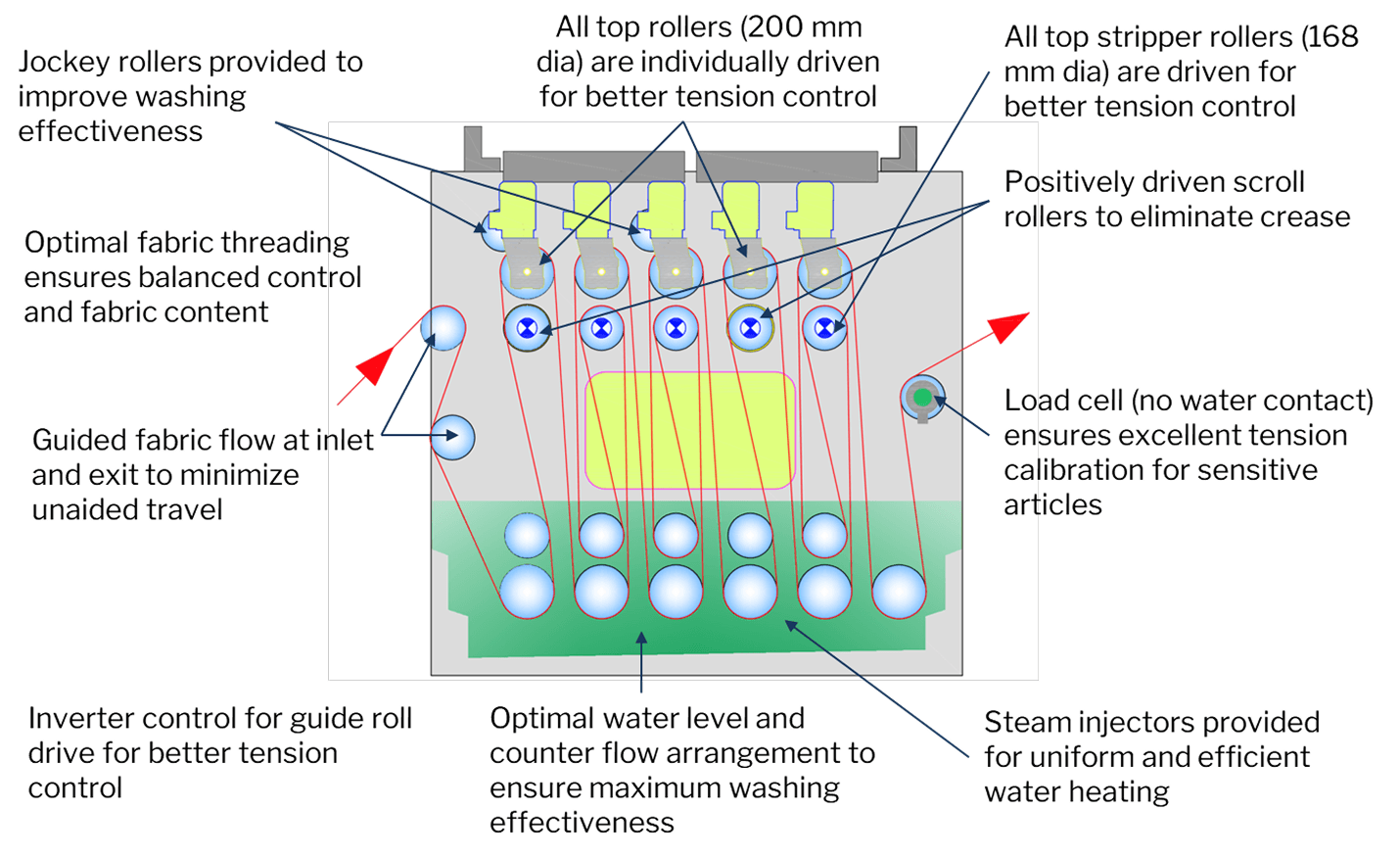

Duplex-L HPE Washing Unit: Key Design Attributes

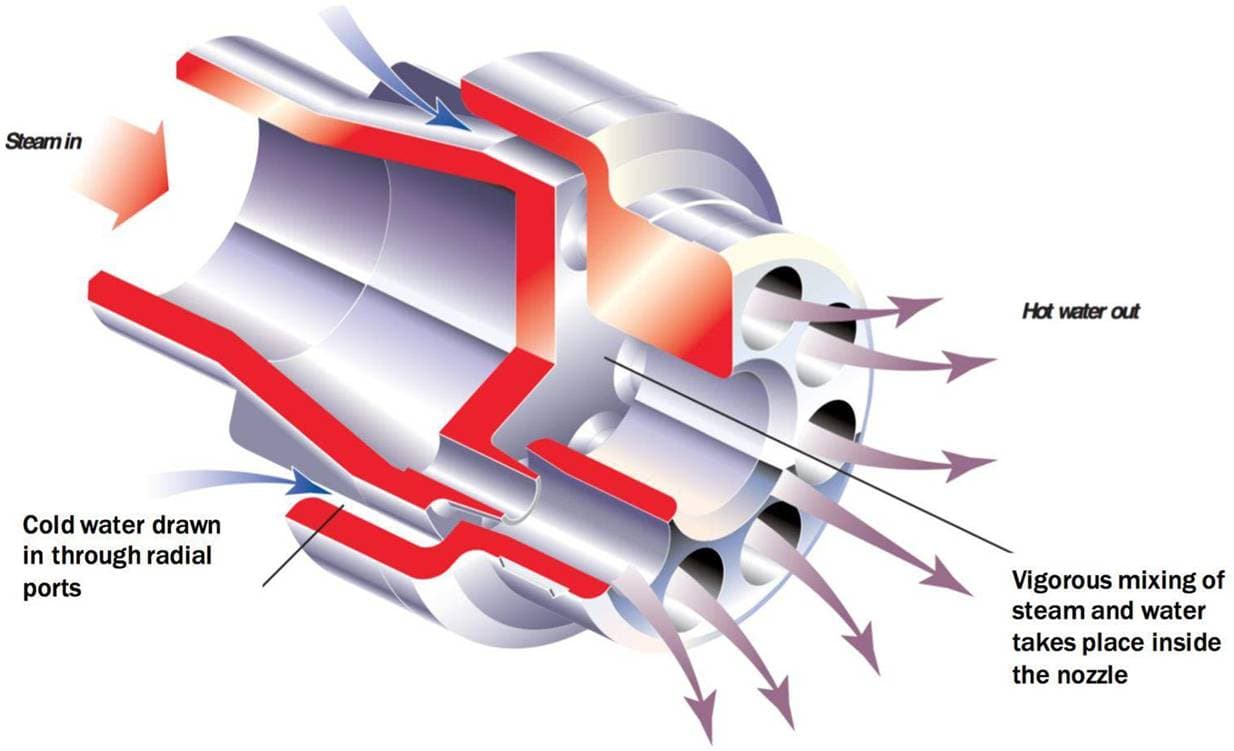

Steam Injector Design
For uniform and faster steam distribution with minimal loss
